Signtac® 12 Outdoor Self-Adhesive Floor Graphics
Signtac® 12 Outdoor Self-Adhesive Floor Graphics

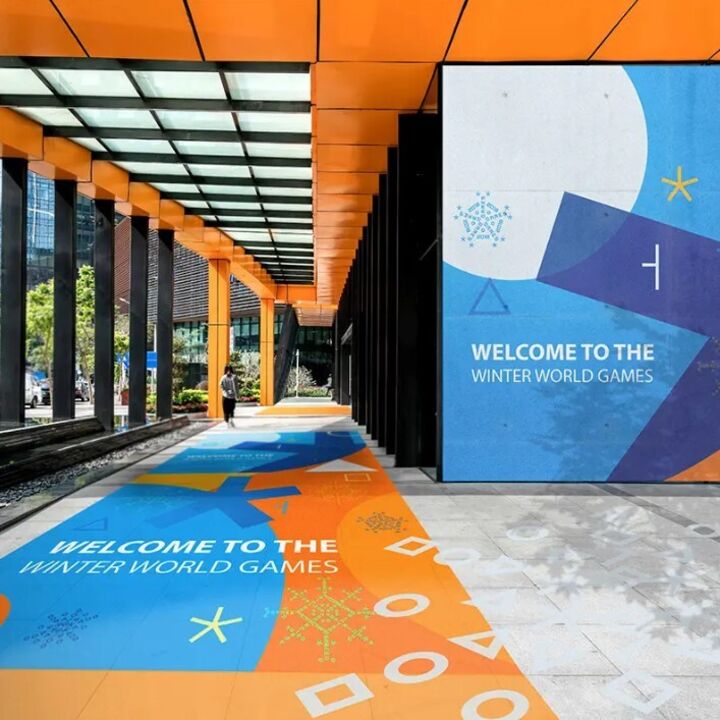

Take your promotions and wayfinding outdoors with Signtac® 12 Outdoor Self-Adhesive Floor Graphics. Engineered for durability and performance, these graphics are perfect for both outdoor and indoor applications, ensuring your message stands strong in any environment.
- Pebble Textured Printed Floor Graphics
- Slip Rated (R11) & Fire Rated
- Great Bulk Discounts From 2 Units!
- Custom Size & Shapes Available (POA)
- 2-Part Laminated For Longer Term (Up To 12 Months)
- Suitable For Both External & Internal Applications
- Aggressive Adhesive For Low-Energy Surfaces Like Smooth Concrete
- Non-Damaging Adhesive (Tools Required For Best Installation - See Below)
- Ideal For Mid To Heavy Foot Traffic Areas
- Perfect For Special Promotions & Wayfinding
- Great Range Of Application Areas (See Below)
- Graphic Design & Professional Installation Services Available
Take your promotions and wayfinding outdoors with Signtac® 12 Outdoor Self-Adhesive Floor Graphics. Engineered for durability and performance, these graphics are perfect for both outdoor and indoor applications, ensuring your message stands strong in any environment.
Featuring a pebble-textured surface, these floor graphics are slip-rated (R11) and fire-rated, making them ideal for high-traffic areas where safety is paramount. The two-part laminated construction provides up to 12 months of longevity, ensuring that your graphics stay vibrant and intact, even under harsh outdoor conditions.
Signtac® 12 Outdoor SS Floor Graphics
Signtac® 12 Outdoor SS is a polymeric PVC film coated with an aggressive high tack adhesive, suited for applications where flexibility and strong adhesion are required. It is recommended that the following guidelines to be carefully read and followed to ensure a successful application. The end user/applicator is responsible for ensuring the film’s suitability for the intended application.
Required Tools
- Heat Gun - for conforming the graphic into the surface texture
Full list of all tools is available in the Application Guide below.
Types of Surfaces
The type of surface will have an impact on the adhesive bond, it is critical to understand the nature of the surface in order to avoid graphic failure or removal issues. Heat is not necessary for application to smooth surfaces, however, on rough surfaces it is required to ensure a successful application.
Surfaces Recommended for Application without heat*:
- Floor Tiles
- Laminate Flooring
- Short Pile Carpet*
- Sealed Wood
- Sealed & Untreated Concrete
- Waxed Vinyl
- Marble
- Ceramic Tiles
Surfaces Recommended for Application with heat*:
- Rough Concrete
- Smooth Concrete
- Stone
For the full Installation Guide & Information, please download the PDF Guide available below in the 'How It Works' section.
Product Lead Time – Please be advised the lead time detailed above is the current working standard for this product. Your despatch and delivery dates will be detailed in your order confirmation sent via email from our Sales Team once your order has been received. For any product requiring artwork completion, the lead time starts from the next business day after you have approved and signed off your digital artwork proof. If we cannot fulfil your order within the detailed lead time, you will be contacted immediately about your order.
Why Choose Signtac® 12 Outdoor Self-Adhesive Floor Graphics
Rugged & Long-Lasting
Designed with an aggressive adhesive, the Signtac® 12 graphics are specifically suited for low-energy surfaces like smooth concrete, making them perfect for outdoor settings. Despite their strong grip, they are removable and non-damaging, allowing for easy updates without leaving behind any residue.
Versatile Applications

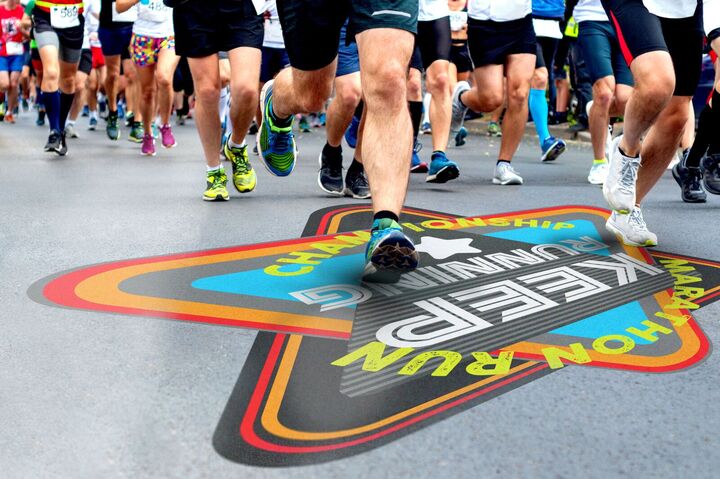

Whether you're highlighting special promotions, directing foot traffic, or enhancing outdoor spaces, these floor graphics offer a versatile solution that works equally well indoors and out, no matter what the weather may have in store. They’re an excellent choice for retail stores, event venues, public spaces, and more.
Expert Services Available
Need help with design or installation? Our graphic design service is available to bring your vision to life, and we offer professional installation to ensure a flawless finish. Make your floors work for you with Signtac® 12 Outdoor Self-Adhesive Floor Graphics - where safety meets style, and durability meets design.
Not sure?
Have Questions?
|
Product |
Signtac® 6 Indoor (PVC) |
Signtac® 6 Indoor (PET) |
Signtac® 12 Indoor |
Signtac® 12 Outdoor SS (This Product Page) |
Signtac® 12 Outdoor RS |
|---|---|---|---|---|---|
|
Usage |
Indoor |
Indoor |
Indoor |
Indoor & Outdoor | Indoor & Outdoor |
|
Lamination |
One Part |
One Part |
Two Part (Laminated) |
Two Part (Laminated) | One Part |
| Material |
200mic monomeric PVC film |
170mic PET film |
Vinyl: 90mic white monomeric PVC Laminate: 100mic matt pebble textured monomeric PVC |
Vinyl: 80mic white polymeric PVC Laminate: 100mic matt pebble textured monomeric PVC |
250mic white aluminium film |
| Description | Fire and slip-rated floor graphics for public spaces | Fire and slip-rated PVC-free floor graphic material | Slip-rated combination designed for floor graphic use on a variety of surfaces | Fire and slip-rated combination designed for floor graphic use on a variety of smooth outdoor surfaces | Fire and slip-rated floor graphic engineered for rough outdoor floor surfaces |
| Applications |
Indoor carpets (low pile), indoor tiles, indoor hardwood, sealed concrete, sealed wood, waxed vinyl, marble, terrazzo. |
Indoor carpets (low pile), indoor tiles, indoor hardwood, sealed concrete, sealed wood, waxed vinyl, marble, terrazzo. |
Indoor carpets (low pile), indoor tiles, indoor hardwood, sealed concrete, sealed wood, waxed vinyl, marble, terrazzo. |
Indoor/outdoor smooth concrete brick and marble | Outdoor tarmac, stone, ceramic tiles, paving slabs, indoor/outdoor concrete, brick |
| Adhesive | Removable | Removable | Removable | Permanent | Permanent |
|
Slip Ratings (Pendulum Test Method) |
Low slip potential 40 PTV | Low slip potential 38 PTV | Low slip potential 36 PTV | Low slip potential 36 PTV | Low slip potential 72 PTV |
|
Slip Ratings (Ramp Test) |
R10 | R10 | R11 | R11 | R12 |
|
Fire Ratings |
B1 | Bfl – s1 | Fire ratings not available | Combined Bfl - s1 | Bfl – s1 |
|
Durability (Dependant upon proper installation and foot traffic) |
Short term up to 6 months indoor | Short term up to 6 months indoor | Long term up to 12 months indoor | Long term up to 12 months outdoor | Long term up to 12 months outdoor |
Artwork and Design
Whether you’re a novice or a professional when it comes to artwork, we’re able to give you guidance or provide artwork templates for you to make sure your product is print perfect.
- Download the PDF template that matches your product selection.
- Upload your artwork here, or send it via email, or WeTransfer to our team.
- Our team will confirm they’ve received your files, and let you know the next steps.
For further information, please read our Artwork Preparation guide, or contact us here with your artwork questions. Alternatively, give us a call on 01297 630130.
Need help with your Signtac® 12 Outdoor Self-Adhesive Floor Graphics design?
Why not use our in-house Graphic Design Team to help you make the most out of your Signtac® 12 Outdoor Self-Adhesive Floor Graphics!
Our designers will work with you to create a professional design to your exact specifications. You can be as involved in the design process as you want to be, either working side by side with our designers or giving them your design brief. We will provide you with an artwork proof for you to approve and will never send your artwork to print without your final sign-off.
Unlike some other companies, we want to offer value for money, so we ensure that you are only charged for the actual time taken to create your design (minimum 15-minute intervals). Formatting a quick layout or checking over print-ready files may be free of charge. If more work is needed, we will contact you to discuss this.
Artwork Templates
- Square (Rounded Edges) - 100 x 100mm Artwork Template.pdf
- Square (Rounded Edges) - 200 x 200mm Artwork Template.pdf
- Square (Rounded Edges) - 300 x 300mm Artwork Template.pdf
- Circle - 100 x 100mm Artwork Template.pdf
- Circle - 200 x 200mm Artwork Template.pdf
- Circle - 300 x 300mm Artwork Template.pdf
- Triangle - 100 x 88mm Artwork Template.pdf
- Traingle - 200 x 175mm Artwork Template.pdf
- Triangle - 300 x 261mm Artwork Template.pdf
- Square (Straight Edges) - 300 x 300mm Artwork Template.pdf
- Square (Straight Edges) - 200 x 200mm Artwork Template.pdf
- Square (Straight Edges) - 100 x 100mm Artwork Template.pdf
- Rectangle (A4) - 210 x 297mm Artwork Template.pdf
- Rectangle (A3+)- 297 x 470mm Artwork Template.pdf
- Rectangle (A2) - 420 x 594mm Artwork Template.pdf
- Rectangle (A1) - 594 x 841mm Artwork Template.pdf
How It Works
Download our handy PDF user instructions below to help understand and install your Signtac® 12 Outdoor Self-Adhesive Floor Graphics. For any support needs, please don't hesitate to contact us.
User Instructions
Floor Graphics

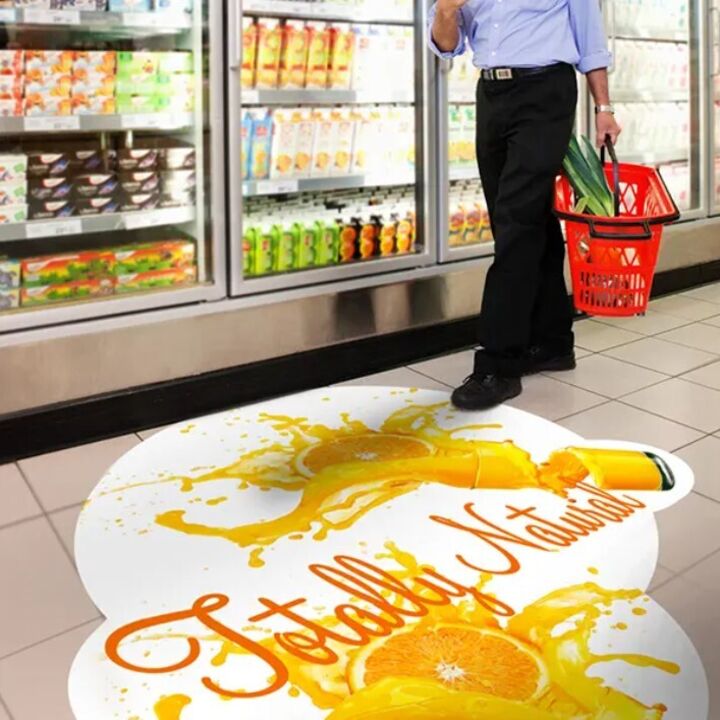

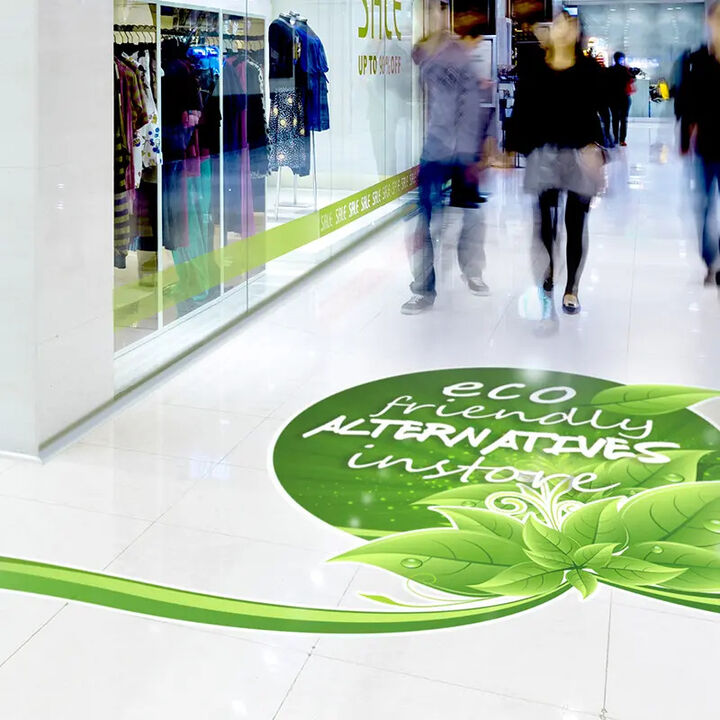

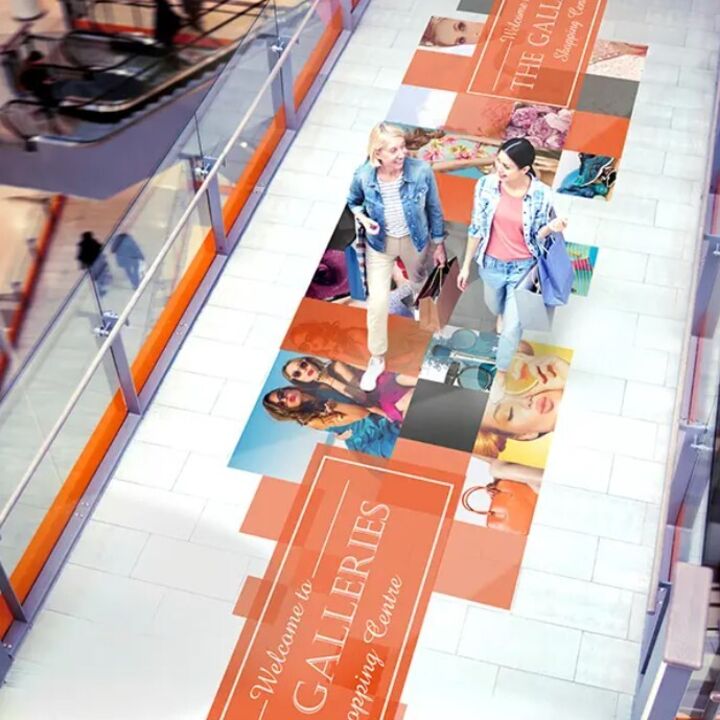

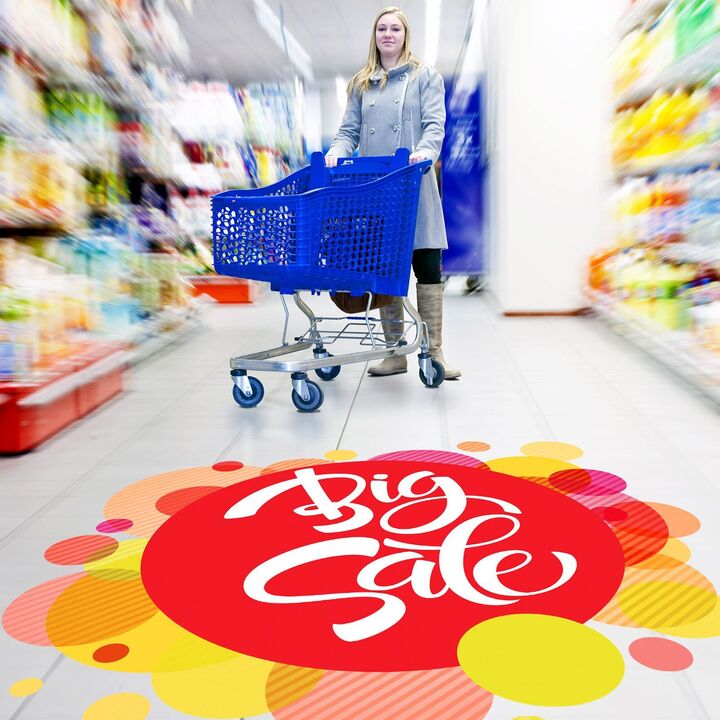

for Retail & Commercial

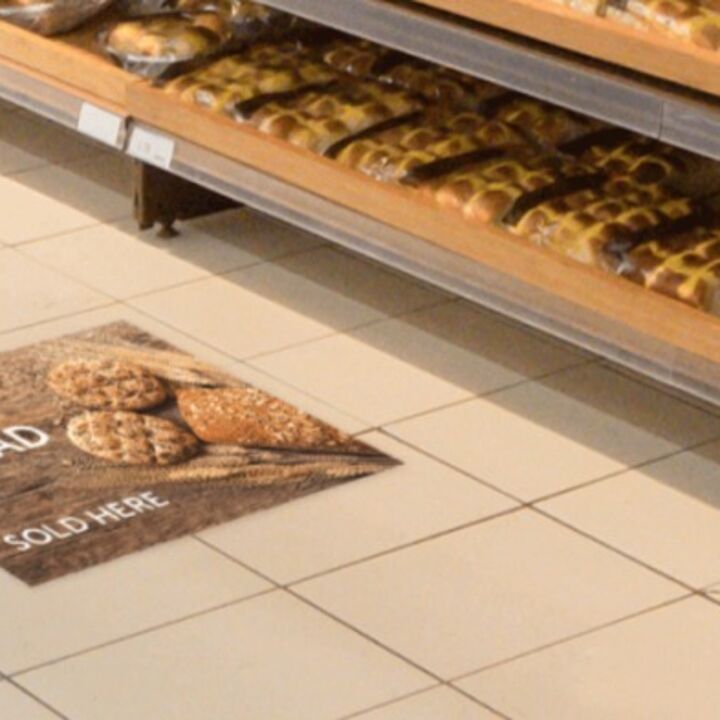

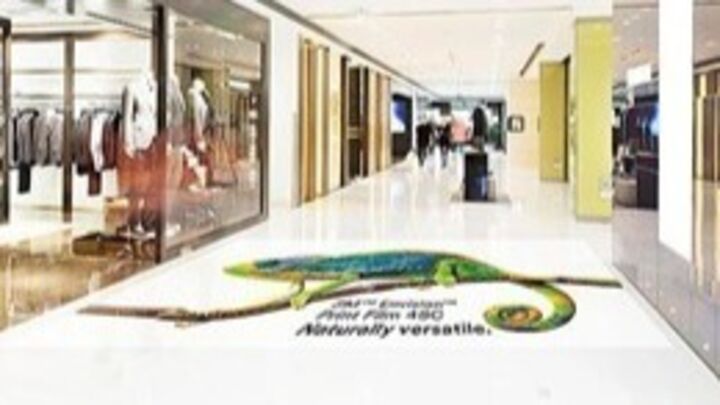

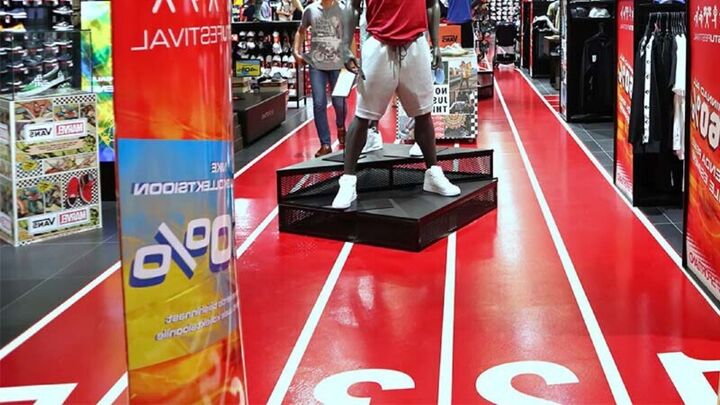

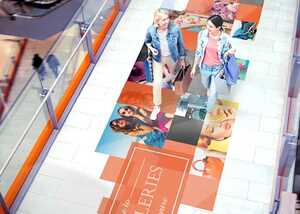

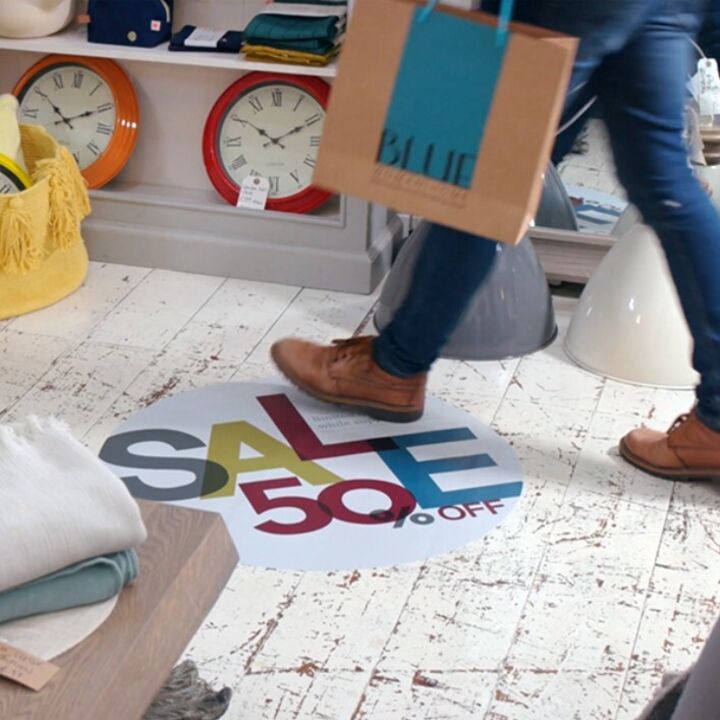

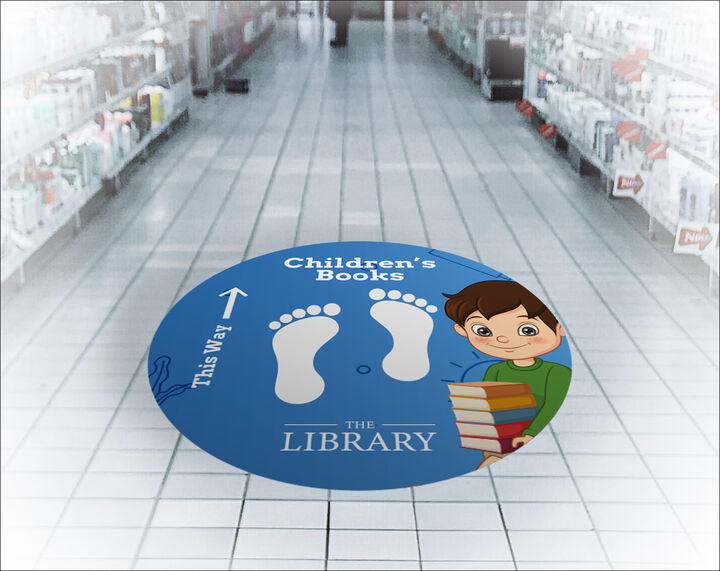

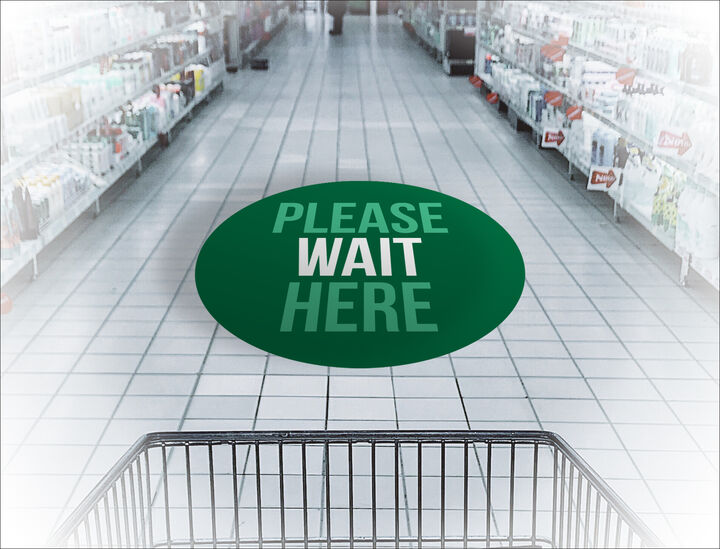

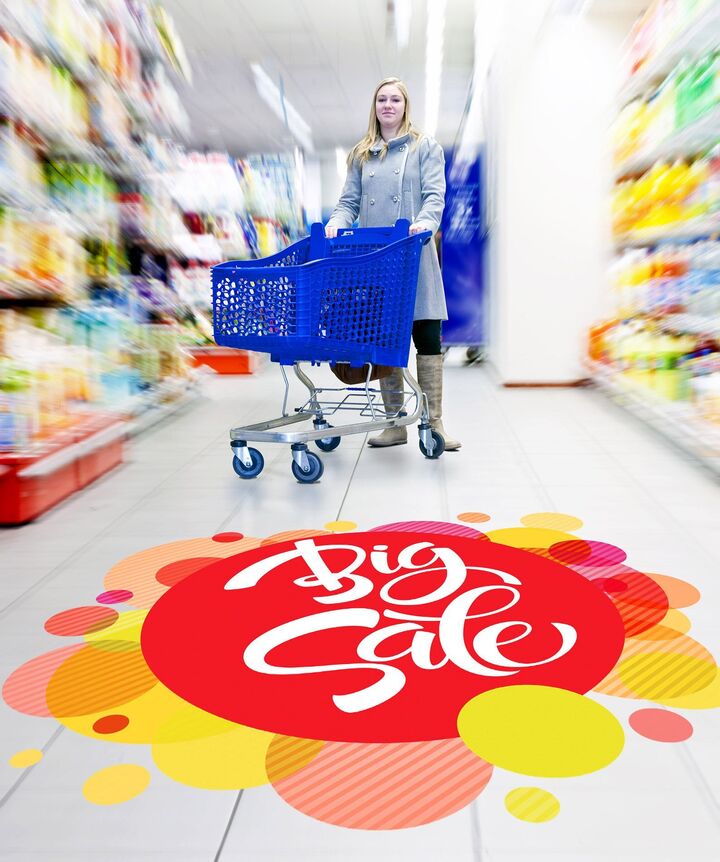

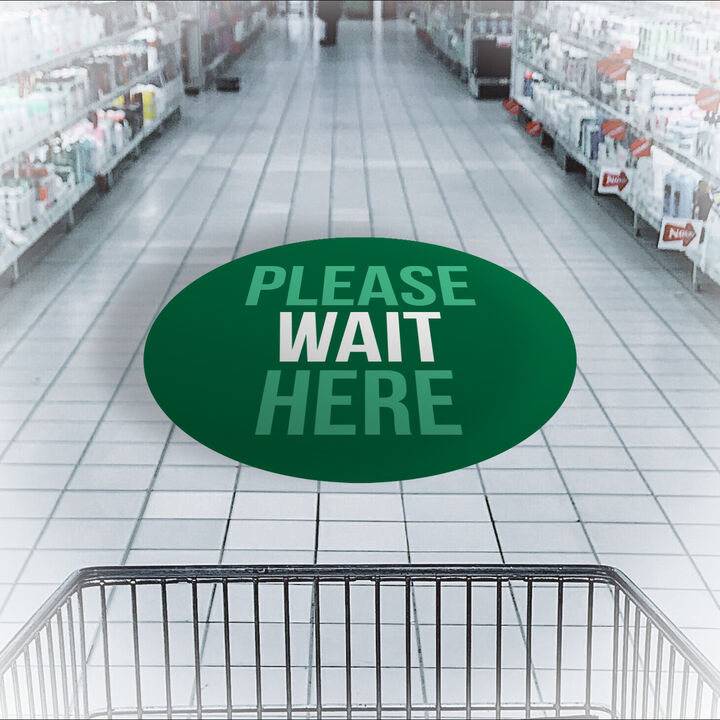

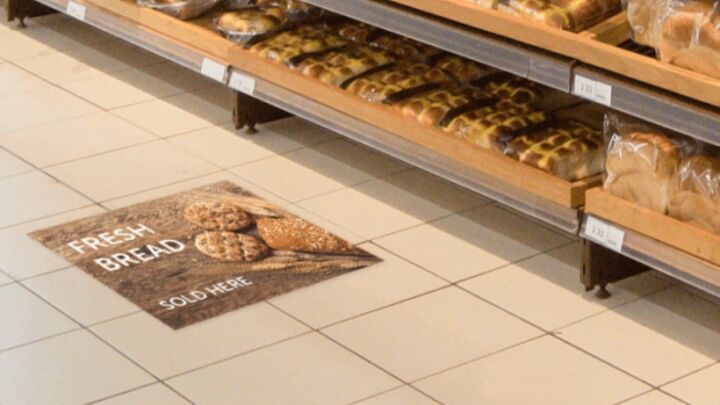

With so many busy & bustling retail landscapes, standing out is paramount. Floor graphics offer a space-saving solution to captivate, navigate customers, and share your branding message.
Floor Graphics

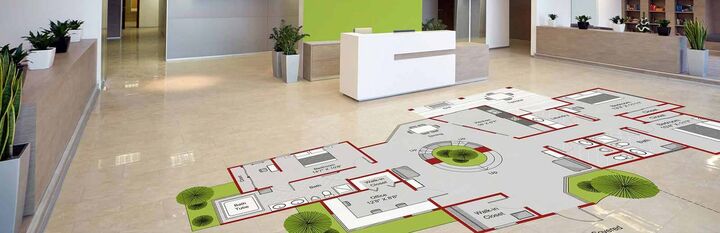

for Exhibitions & Events

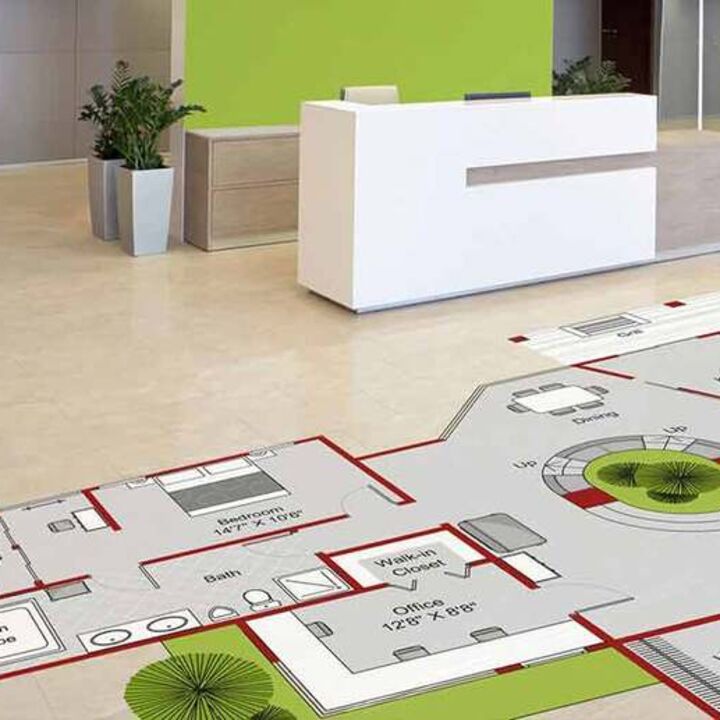

Make a statement without leaving a mark. Our slip rated floor graphics can efficiently direct visitors and offer visual appeal. Easy to apply and remove without damaging carpets or solid floor surfaces.
Floor Stickers
for Long Term Displays
Our extremely high-tack solution for environments that need a long-lasting display such as airports, hotels & hospitals. Perfect for low energy and coarse surfaces such as brick and concrete.
