Finger Post Signs
Finger Post Signs
OctaPoint Finger Post system is our premium system with no visible fixings using the same 16mm extruded aluminium finger that is used on the TriPoint system.
- Crafted From High-Grade Aluminium
- Powder Coated Fingers, Pole & Base To Any RAL Colour
- Up To 8 Finger Arms Per Level
- Versatile Multi-Level Configuration
- Customisable Finger Panel Sizes
- All Assembly Fixings Provided
- Customised To Your Requirements
- Graphic Design Service Available
- Installation Service Available
Our OctaPoint Finger Post system stands out as our premium offering, boasting a sleek design with no visible fixings. Utilising the same 16mm extruded aluminium finger arms as our TriPoint system, OctaPoint provides both functionality and aesthetic appeal. Here are some key features of the OctaPoint system:
- Multi-Level Capability: The OctaPoint system can support up to 8 finger arms per level, allowing for a versatile multi-level configuration to suit various signage needs.
- Customisable Finger Arms: The finger arms come in four height options—50mm, 100mm, 165mm, or 300mm—and can extend up to 790mm in length. This ensures that the system can be tailored to your specific requirements.
- Neat Covering Plates: Where finger arms are not needed, neat covering plates are fitted, maintaining the system's clean and professional appearance.
- Durable Fixings: The aluminium finger arm attaches to the post using a robust 5mm thick aluminium end plate that slots seamlessly into the internal post extrusion.
- Secure Installation: For installation, the post must be secured into the ground with concrete or postcrete. Alternatively, the system can be surface-mounted using a welded base plate post.
The OctaPoint system is ideal for clients seeking a high-quality, visually appealing, and flexible signage solution. Its design not only ensures durability and ease of installation but also provides the adaptability needed for various directional and informational signage applications.
Pictured: OctaPoint System comprising of x3 165mm planks with a chevron end on level 1, x2 100mm planks with a flat end on level 2, and x2 165mm planks with a flat end on level 3, all with colour-matched digital prints. The planks and sleeves have been powder coated to a light green, the posts a dark green, and the Beacon Cap orange.
Road regulations specify a minimum mounting height of 2100mm over pedestrian footpaths and 2300mm over cycle lanes.
ORDERING YOUR OCTAPOINT POST MOUNTED SIGN
- Quantity: How many systems do you require?
- How far is the ground from the bottom of the lowest Finger (minimum 2100mm for pedestrian paths, 2300mm for cycle paths)
- Plank Depth: Choose from 50mm, 100mm, 165mm & 300mm (You can have different sizes for each level).
- Length Of Fingers: Any size up to 790mm (You can have different sizes for each level).
- Number Of Fingers on Level 1 (Top): 1-8 (8 Maximum)
- Number Of Fingers on Level 2: 1-8 (8 Maximum)
- Number Of Fingers on Level 3: 1-8 (8 Maximum)
- Number Of Fingers on Level 4: 1-8 (8 Maximum)
- Number Of Fingers on Level 5: 1-8 (8 Maximum)
OctaPoint Finger Post

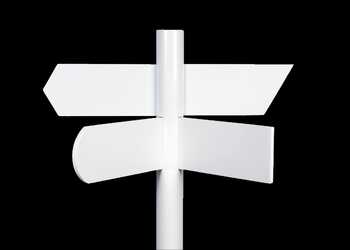

Octapoint Fingers
The Finger Planks come with your choice of Flat, Slanted, Chevron or Rounded ends. Bespoke designs can be manufactured to your specifications. They also come in a range of plank heights: 50mm, 100mm, 165mm and 300mm.
OctaPoint Finger Post

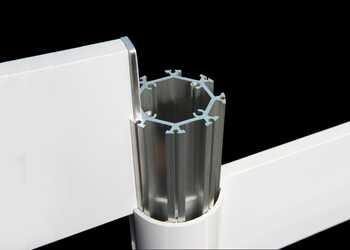

8 Directions Per Level
You can slide up to 8 Finger arms on a single level (8 direction options).
OctaPoint Finger Post

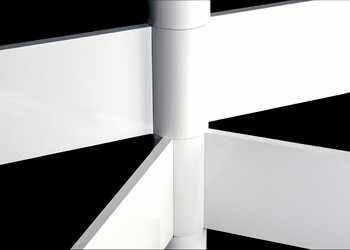

Outer Sleeves
The Outer Sleeve gives OctaPoint a seamless, modern, no fixings look by covering the internal mounting mechanism and fixings.
OctaPoint Finger Post

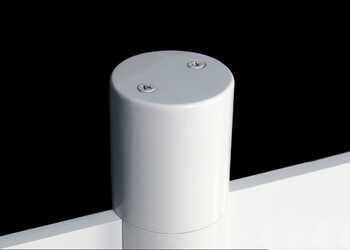

Cap Options
OctaPoint can be finished with a 5mm thick standard cap or a welded beacon cap.
