Interior and Exterior Finish

The interior of each notice board is lined with a galvanized steel sheet, lacquered in white on the inside back panel and light grey on the exterior back panel. For the frame finish, clients can choose between silver anodized aluminium or any colour from our extensive notice board range, allowing for aesthetic customization to fit seamlessly into the surrounding environment.

Installation Options and Additional Features

Each notice board includes Procity® magnets – one per A4 sheet, up to a limit of 20 magnets per display case. These are designed to securely hold printed materials without damaging them.

For environments requiring enhanced visibility, a high-efficiency LED lighting kit is available. The kit features white light LEDs with an IP20 rating, transformers with an IP67 rating, a typical brightness of 120 lumens per watt, a life expectancy of 75,000 hours, and an energy efficiency of 12.5 watts per linear meter. It’s important to note that LED ribbons and transformers are not factory-fitted and require installation by a qualified electrician to comply with applicable safety regulations.

Display: Single Sided

Glazing: 4mm anti-vandal Plexichoc™

Opening System: Side Opening (Reversible)

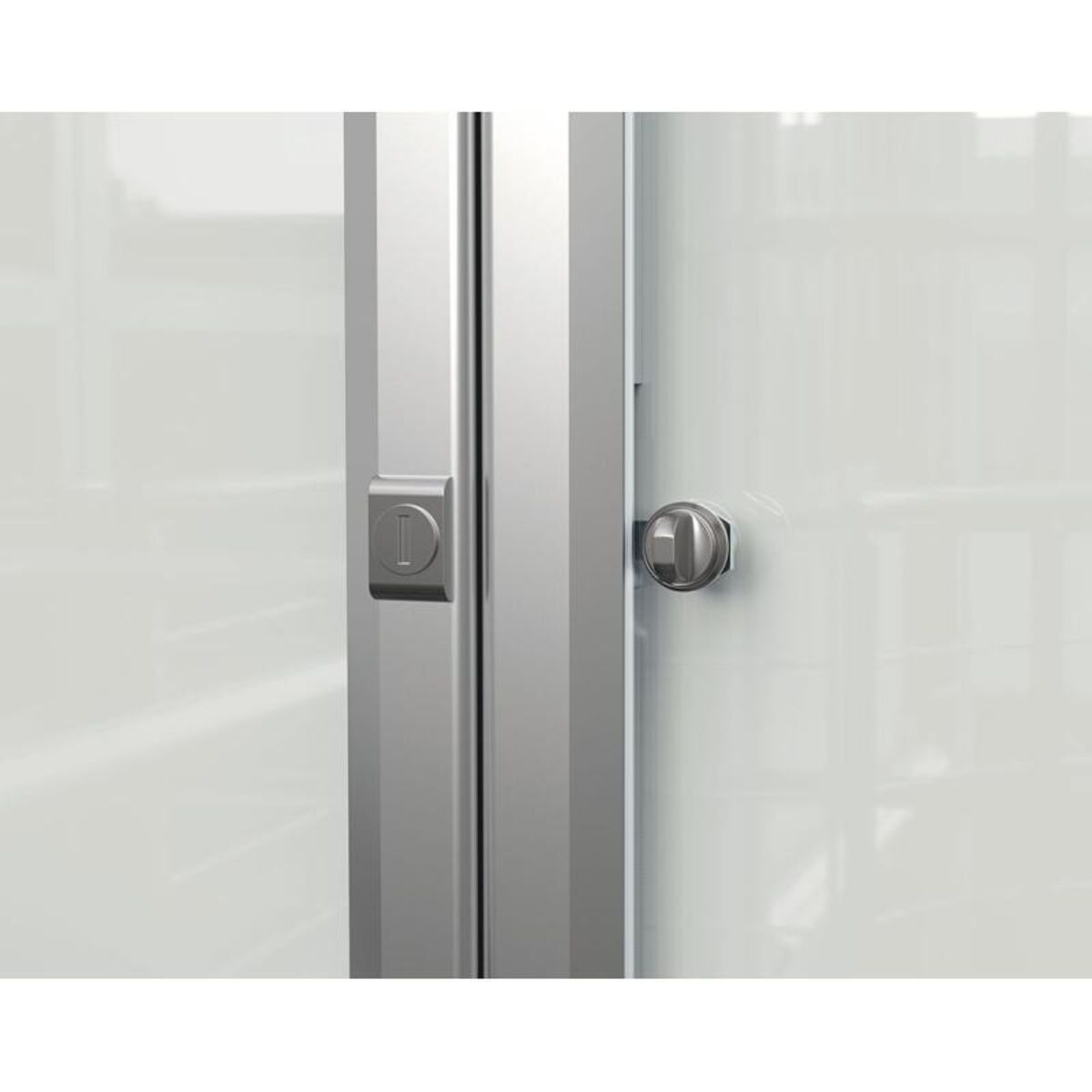

Locking System: Tamperproof safety lock. Supplied with 2 keys. (2 Locks on 12 A4 and 16 A4).

Waterproofing:  Elastomer Seal

Interior Finish:  Galvanised steel sheet lacquered in white on the interior back panel, light grey (RAL 7032) on the exterior back panel.

Frame Finish:  Silver Anodised Aluminium or Painted (see available RAL colours)

Installation: Made for attachment to walls. If looking to attach to wood or fence, please contact us for a quote including a weather-protective backing board. Post Mounted Options Available.

Included:  Magnets Included (1 per A4, limit of 20 per display case).

Optional Lighting Kit: PLEASE NOTE Lighting Unit will not be supplied attached to the board. To install the kit, the customer is obliged to drill into the notice board to pass the wires, however,  do not do so on top of the notice board. Once the wires are passed, use silicone both inside and out of the hole to make a waterproof seal. Do not put the transformer inside the case, due to heat this may cause condensation. Please contact us for further information if required.

LED LIGHTING KIT LED

Lighting Kits make it easier to read the documents on display.

• High-quality white light: 120 lumens per watt, IP20 LEDs
• Transformers: IP67
• Life span: 75,000 hours of operation
• Power consumption: 12.5 watts per linear metre
• Caution: electrical connections must be made by a professional and comply with all applicable regulations.

Wiring recommendations (maximum distance per linear metre of LED strip):

• 5 m with 2 x 0.75 mm cable
• 10 m with 2 x 1.5 mm cable
• 15 m with 2 x 2.5 mm cable

Note: our kits consist of one or more LED strips, depending on the size of the notice board, and a transformer.

PRODUCT WARRANTY

Our products are essential elements of urban life. Longevity, durability and your legitimate demand for sustainability require a high level of quality. Cutting, bending, notching, welding, glueing, grinding, sanding, anti-corrosion treatment, finish paint, and packaging: the greatest professionalism is used throughout the manufacturing process. Our approach is to offer a warranty on this product according to the following conditions:

• Weld Strength - 5-Year Warranty
• Quality of paint finish & UV resistance - 5-Year Warranty
• Waterproofness of outdoor noticeboards - 5-Year Warranty
• Resistance of recycled plastic - 5-Year Warranty (excluding deformation and discolouration)
• High-density polyethylene - 5-Year Warranty (excluding discolouration)
• Quality of paints/stains on wood components and their resistance to UV - 1-Year Warranty (untreated wood components are not guaranteed)

Outside the areas specified above, the contractual guarantee is limited to one year.

Product Lead Time – Please be advised the lead time detailed above is the current working standard for this product. Your despatch and delivery dates will be detailed in your order confirmation sent via email from our Sales Team once your order has been received. For any product requiring artwork completion, the lead time starts from the next business day after you have approved and signed off your digital artwork proof. If we cannot fulfil your order within the detailed lead time, you will be contacted immediately about your order.
